Home - Products - Union - One Piece Fitting - Union - One Piece Fitting - 10511PK
Series:
Model: 10511PK
Description:

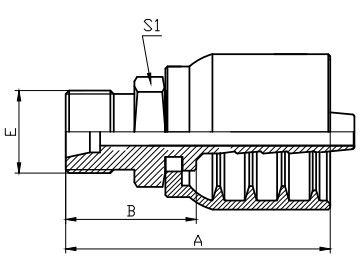

| PART NO. | E (THREAD E) | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (A) | DIMENSIONS (B) | DIMENSIONS (S1) |
| 10511-18-04PK | M18X1.5 | 6 | 4 | 46 | 26.4 | 19 |
| 10511-20-03PK | M20X1.5 | 5 | 3 | 45.5 | 26.9 | 22 |
| 10511-20-06PK | M20X1.5 | 10 | 6 | 50.5 | 28.5 | 22 |
| 10511-22-06PK | M22X1.5 | 10 | 6 | 54 | 32 | 22 |
| 10511-24-08PK | M24X1.5 | 12 | 8 | 60 | 31.5 | 24 |
| 10511-30-10PK | M30X2 | 16 | 10 | 72 | 34.9 | 30 |
| 10511-36-12PK | M36X2 | 20 | 12 | 78.5 | 38.9 | 36 |
| 10511-42-16PK | M42X2 | 25 | 16 | 87 | 42 | 46 |
