Home - Products - Hydraulic Valve & Manifold Block - Carbon Steel - Single Subplate Cetop 5 - PHS5.CP
Series:
Model: PHS5.CP

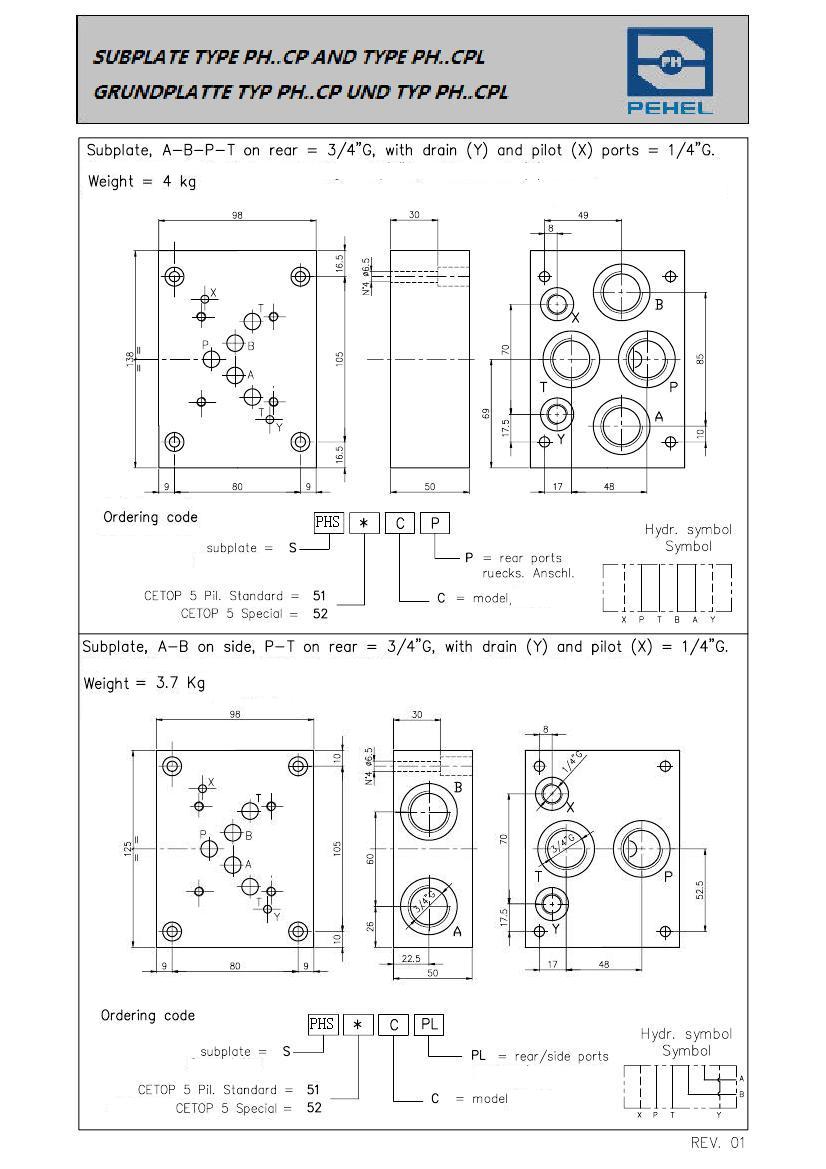

1. Subplate, A-B-P-T on rear=3/4”G, with drain and pilot ports=1/4”G, Weight=4kg
2. Subplate, A-B on side, P-T on rear=3/4”G, with drain and pilot ports=1/4”G, Weight=3.7kg
3. up to 8 stations
4. Superior in quality and competitive in price
Description:
A-B-P-T on rear 3/4''G, X-Y on rear 1/4''G, CETOP 5 pil.




NPT,SAE,PT thread for all parts is available
