Home - Products - Union - One Piece Fitting - Union - One Piece Fitting - 20511PK
Series:
Model: 20511PK
Description:

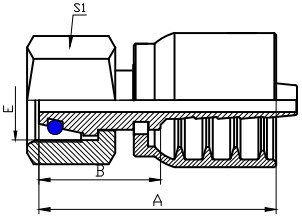

| PART NO. | E (THREAD E) | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (A) | DIMENSIONS (B) | DIMENSIONS (S1) |
| 20511-18-04TPK | M18X1.5 | 6 | 4 | 46.5 | 27.4 | 22 |
| 20511-18-06TPK | M18X1.5 | 10 | 6 | 49.5 | 28 | 22 |
| 20511-20-03TPK | M20X1.5 | 5 | 3 | 43 | 24.9 | 24 |
| 20511-20-06TPK | M20X1.5 | 10 | 6 | 51 | 29.5 | 24 |
| 20511-22-06TPK | M22X1.5 | 10 | 6 | 51.5 | 30 | 27 |
| 20511-24-08TPK | M24X1.5 | 12 | 8 | 57 | 29 | 30 |
| 20511-30-10TPK | M30X2 | 16 | 10 | 67.5 | 30.9 | 36 |
