Home - Products - Hydraulic Adapter - Other Fittings - 6P9

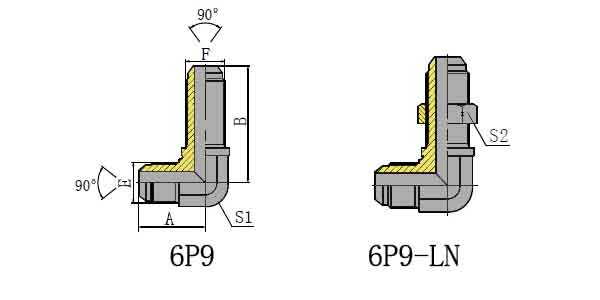

Series: 90 SAE MALE BULKHEAD
Model: 6P9

Description:




.
PART NO THREAD DIMENSIONS
E F A B S1 S2
6P9-06 5/8"X18 5/8"X18 15.7 36 24 24
Note:In case if you are interested to order the adapter in complete set with lock nut ,it is necessary to insert suffix "LN" after our part no.,for example 6P9-06LN.
