Home - Products - Hydraulic Valve & Manifold Block - aluminium - Single Subplate Cetop 3 - PHAS338PL
Series:
Model: PHAS338PL

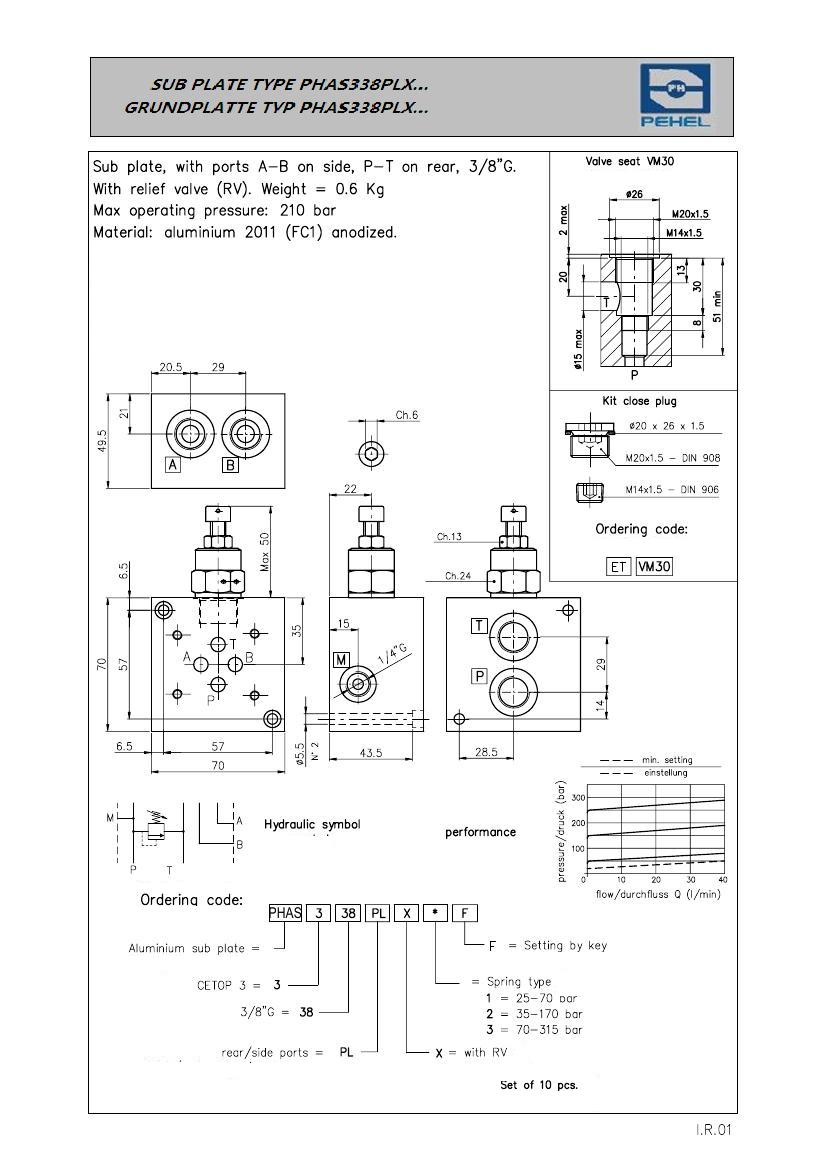

1. Sub plate, with ports A-B on side, P-T on rear, 3/8”G.
2. with relief valve (RV). Weight=0.6 kg
3. Max operating pressure: 210 bar.
4. Material: aluminum
5. Scientific design and precise manufacturing
Description:
Sub plate, with ports A-B on side, P-T on rear, 3/8''G. With relief valve (RV)




NPT,SAE,PT thread for all parts is available
