Home - Products - Hydraulic Valve & Manifold Block - aluminium - Single Subplate Cetop 3 - PHAS338L
Series:
Model: PHAS338L
1. Material: aluminum

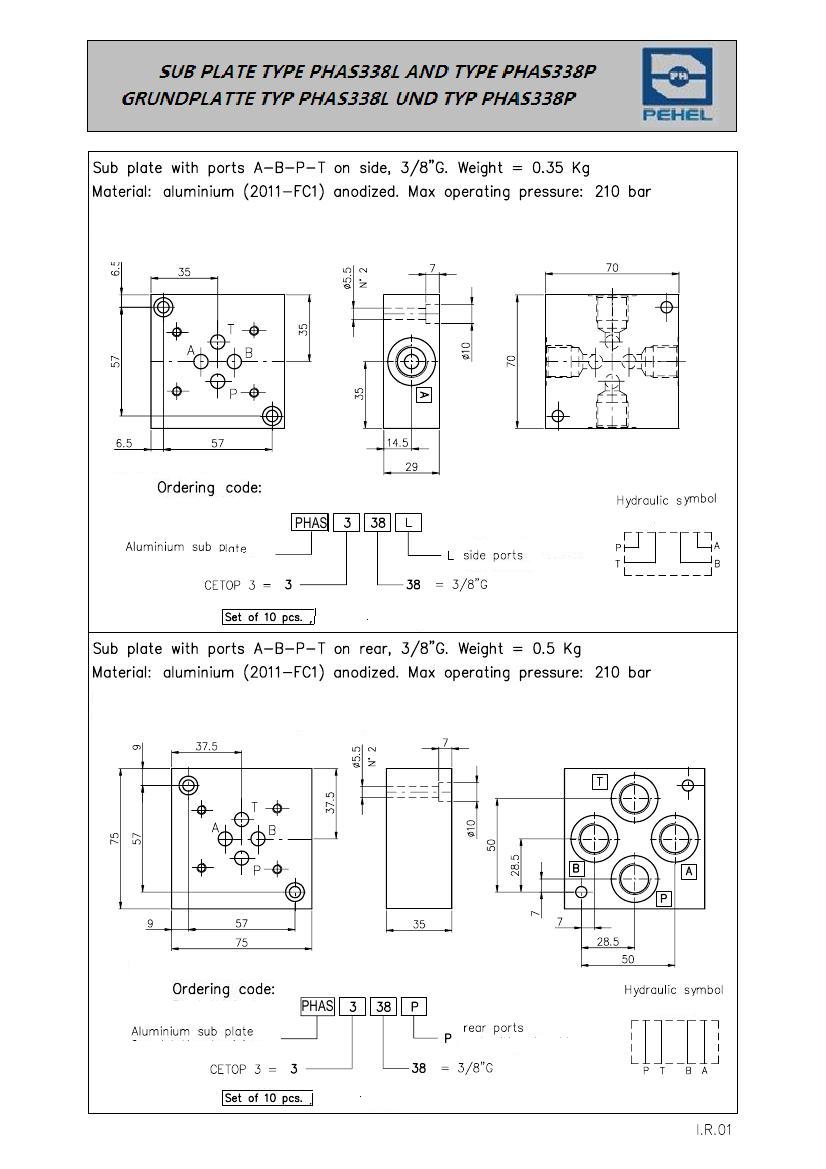

2. Sub plate with ports A-B-P-T on side, 3/8”G. Weight=0.35kg. Max operating pressure: 210 bar.
3. Sub plate with ports A-B-P-T on rear, 3/8”G. Weight=0. 5kg.Max operating pressure: 210 bar.
4. Superior in quality and competitive in price
Description:
Sub plate with ports A-B-P-T on side, 3/8''G




NPT,SAE,PT thread for all parts is available
