Series: BSP thread port and mating stud end
Model: BSP thread port and mating stud end

Description:

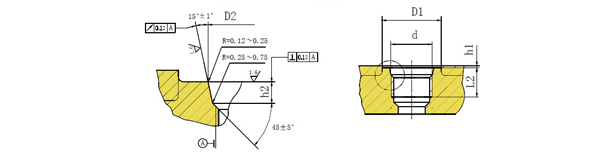

THREAD
d		 D1min D2
(0£¬+0.12)
+0.12		 h1
(MAX) 		H2
(0£¬+0.4)
+0.4		 L2
(MIN)
G1/8”X28 15 11.24 0.6 1.3 10.5
G1/4”X19 19 14.16 1.2 11.0
G3/8”X19 23 18.86 1.9 12.5
G1/2”X14 27 22.40 0.8 15.0
G5/8”X14 31 26.00 2.4 16.3
G3/4”X14 33 28.92 1.1 16.3
G1”X11 40 35.50 19.1
G1.1/4”X11 50 43.56 21.4
G1.1/2”X11 56 49.42 22.5
G2”X11 69 61.42 25.7
