How To Order Hose Fitting

MATERIAL	CARBON STEEL	COPPER	STAINLESS STEEL
SIGN	-	BR	SS

HOSE DN	3	4	5	6	8	10	12	16	20	22	25	32	40	45	50	64
HOSE DASH	-01	-02	-03	-04	-05	-06	-08	-10	-12	-14	-16	-20	-24	-28	-32	-40

BSP THREAD	G1/8"28	G1/4"×19		G3/8"×19	G1/2"×14	G5/8"×14	G3/4"×14	G1"×11	G1.1/4"×11	G1.1/2"×11	G2"×11
BSPT THREAD	R1/8"28	R1/4"×19		R3/8"×19	R1/2"×14		R3/4"×14	R1"×11	R1.1/4"×11	R1.1/2"×11	R2"×11
NPT THREAD	RZ/8"27	Z1/4"×18		Z3/8"×18	Z1/2"×14		Z3/4"×14	Z1"×11.5	Z1.1/4"×11.5	Z1.1/2"×11.5	Z2"×11.5
JIC THREAD		7/16"×20	1/2"×20	9/16"×18	3/4"×16	7/8"×14	1.1/16"×12	1.5/15"×12	1.5/8"×12	1.7/8"×12	2.1/2"×12
FLANGE SIZE					1/2"		3/4"	1"	1.1/4"	1.1/2"	2"
DASH	-02	-04	-05	-06	-08	-10	-12	-16	-20	-24	-32
Note:The dash of metric thread accords with the O.D of thread.

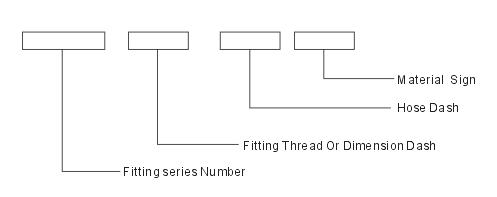

Example:Fitting series is P15611,fitting thread is Z1/2"×14,hose bore is 12mm,and is made of carbon steel the number is P15611-08-08,if made of stainless steel,the number is P15611-08-08SS.
Note:1.For use with braided hoses.2.If use with spiral hoses,the fifth number of hose fitting series change from "1" to "2",for example: from P26711-**-** to P26712-**-**
