Home - Products - Hydraulic Adapter - Metric Standard - Metric Thread 74 Cone Flared Tube Fitting - 4Q
Series: METRIC MALE 74 CONE PLUG
Model: 4Q

Description:

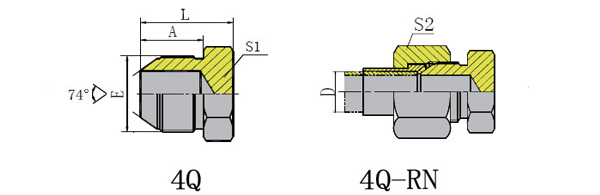

PART NO. THREAD TUBE O.D. DIMENSIONS
E D A L S1 S2
4Q-10 M10X1 5 12.5 18.5 12 14
4Q-12 M12X1.5 6 15.7 21.7 14 14
4Q-14 M14X1.5 8 17 23 17 17
4Q-16 M16X1.5 10 18 24 17 19
4Q-18 M18X1.5 12 18 24 19 22
4Q-22 M22X1.5 14 19.5 27.5 24 27
4Q-24 M24X1.5 16 20 30 27 30
4Q-27 M27X1.5 18 20 30 30 32
4Q-30 M30X1.5 20 23 34 32 36
4Q-33 M33X2 22 26 37 34 41
4Q-36 M36X2 25 25 38 38 41
4Q-39 M39X2 28 26 39 41 46
4Q-42 M42X2 32 28.5 41.5 46 50
4Q-45 M45X2 34 28.5 41.5 46 50
Note: In case if you are interested to order the adapter in complete set with sleeve and nut ,it is necessary to insert suffix "RN" after our part no.,for example 4Q-18RN
