Home - Products - Hydraulic Machine - Hose crimping machine - PH-TCR-B32
Series: Machine

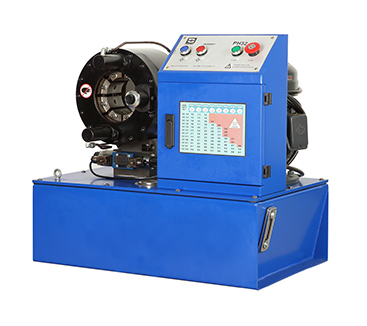

Model: PH-TCR-B32

Description:




TECHNICAL SPECIFICATIONS
Max Crimping Dia:1-1/4"  (1-4SP hoses)
Maximum opening:+25mm
Accuracy:0.02mm
Oil Pump Perssure:28MPa
Crimping Force (T):137
Electromotor Power:3kw
Voltage:220V/380V
Dies supplied:10 12 14 16 19 23 27 32 36 41 47 54
Weight :170kg
Dimension:650*450*660mm
