Home - Products - Hydraulic Machine - Nut crimping machine - PH-LCR-B152
Series:

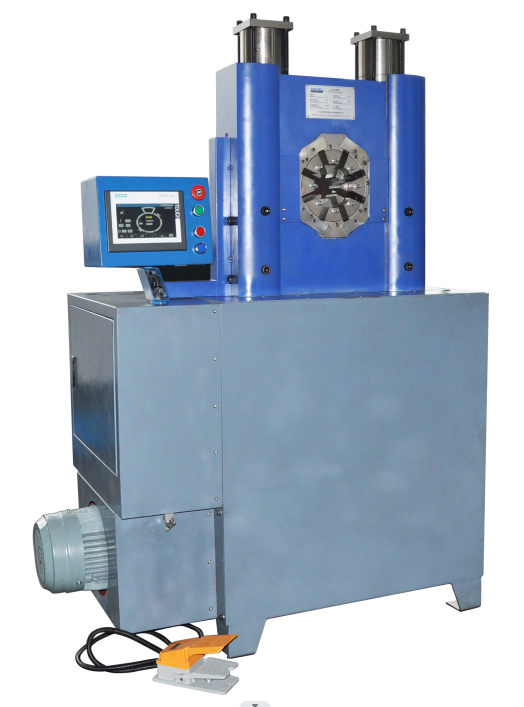

Model: PH-LCR-B152

Description:




TECHNICAL SPECIFICATIONS
Max Pressure P=31.5MPa
Electromotor Power 4.6KW
Open Mould Speed 28mm/s
Close Mould Speed 23mm/s
Compress Speed 1.3mm/s
Crimping Force (KN/T) 3100KN
Voltage 380V
Total Run 70mm
Industrial Pipe, Hydraulic Pipe 4"£¬2-1/2",2"-6S
Opening without Mould 215mm
Min Mold Closure(without mould) 145mm
Max Mould Width 126mm
Max Height of Mould Cneter 1207mm
Weight 1600KG(Including dies)
Dimension 1300*600*1700£¨Net Measurement£©                                   1350*660*1800£¨Measurement With  Packaging)
          Dies supplied£¨ ¡é,   L) ¡é14 ¡é17 ¡é20 ¡é24,L65
¡é28¡é32¡é36¡é40 L80 /¡é44 ¡é47¡é50,L100
¡é54¡é57¡é62¡é67¡é71¡é84,L118
