Home - Products - Hydraulic Machine - Nut crimping machine - PH-LCR-B203
Series:

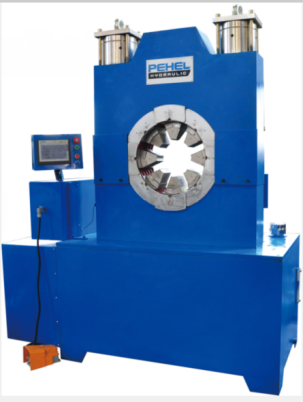

Model: PH-LCR-B203

Description:




 TECHNICAL SPECIFICATIONS
Open and close range 250mm
Oil Pump Perssure 31.5Mpa
Crimping Force (KN/T) 5000KN/500T
Electromotor Power 5.5kw
Voltage 380V
Industrial 8''(10'')
Opening 150mm
Opening without dies 445mm
Oil 400L
Weight 3600KG
Dimension 830*1840*2200(Net Measurement)
  900*1900*2350(Measurement with packaging)
Dies supplied 52 63 66 69 78 81 88 118 146 172 178 235
