Home - Products - Hydraulic Valve & Manifold Block - Carbon Steel - Monoblock Cetop 3 - PHM203..YK
Series:

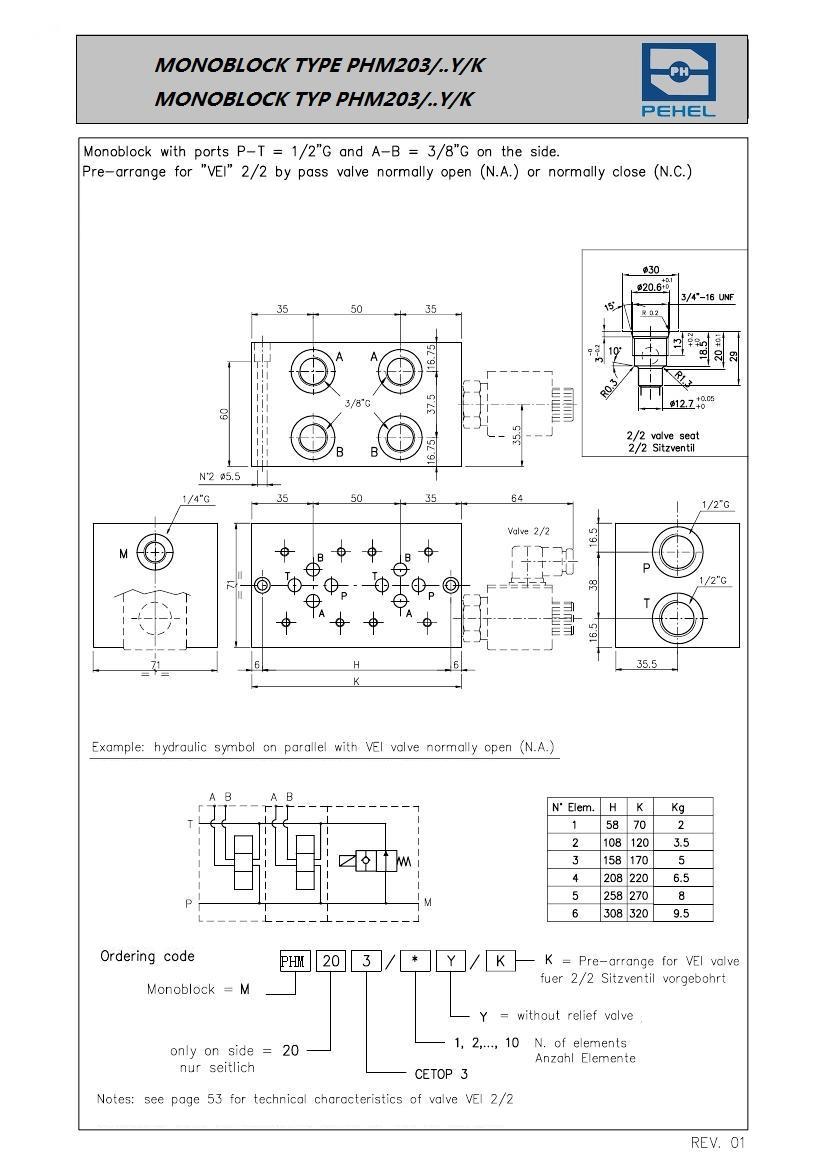

Model: PHM203..YK
1. Monoblock with ports P-T=1/2”G and A-B=3/8”G on the side.
2. Pre-arrange for “VEI” 2/2 by pass valve normally open (N.A.) or normally close.(N.C.)
3. up to 8 stations
4. Superior in quality and competitive in price
Description:
A-B on side 3/8''G, P-T 1/2''G, without R.V. and prearranged for 2/2 valve




NPT,SAE,PT thread for all parts is available
