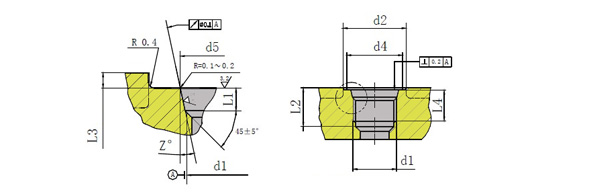

Series: SAE thread port and mating stud end
Model: SAE thread port and mating stud end

Description:




d1
THREAD		 d2 d4
(min)		 d5
(±0.05)		 L1
(±0.2)		 L2
(min) 		L3 L4
(min)		 Z
(±1°)
5/16”X24 17 11 9.15 2.1 12 1.6 10 12°
3/8”X24 19 13 10.75 12 10
7/16”X20 21 15 12.45 2.6 14 11.5
1/2”X20 23 16 14.05 14 11.5
9/16”X18 25 18 15.70 2.7 15.5 12.7
3/4”X16 30 22 20.65 17.5 2.4 14.3 15°
7/8”X14 34 26 24 20 16.7
1.1/16”X12 41 32 29.2 3.5 23 19
1.3/16”X12 45 35 32.4
1.5/16”X12 49 38 35.55 3.2
1.5/8”X12 58 48 43.55
1.7/8”X12 65 54 49.9
2.1/2”X12 88 70 65.75
