产品名称: 英管螺纹油口
代号: BSP thread port and mating stud end


产品描述:

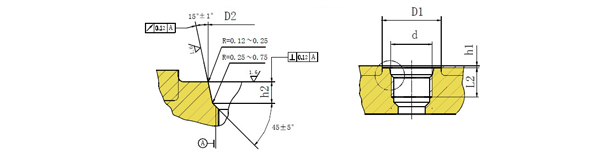

    螺纹
d

D1min

D2
(0，+0.12)
+0.12

h1
(最大)

H2
(0，+0.4)
+0.4

L2
(最小)

G1/8”X28

15

11.24

0.6

1.3

10.5

G1/4”X19

19

14.16

1.2

11.0

G3/8”X19

23

18.86

1.9

12.5

G1/2”X14

27

22.40

0.8

15.0

G5/8”X14

31

26.00

2.4

16.3

G3/4”X14

33

28.92

1.1

16.3

G1”X11

40

35.50

19.1

G1.1/4”X11

50

43.56

21.4

G1.1/2”X11

56

49.42

22.5

G2”X11

69

61.42

25.7
