美制螺纹油口
电话: 0086.574.88461212 /84481166
传真:0086.574.83064867
进出口部:0086.574.87056170
首页 - 产品展示 - 过渡接头 - 接头油口 - 美制螺纹油口 - SAE thread port and mating stud end
产品名称: 美制螺纹油口
代号: SAE thread port and mating stud end

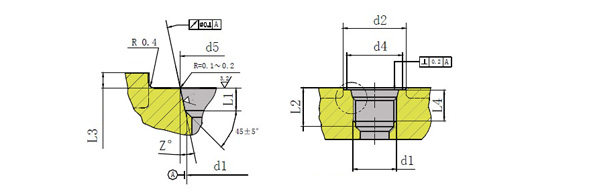

产品描述:




d1
螺纹

d2

d4
(最小)

d5
(±0.05)

L1
(±0.2)

L2
(最小0

L3

L4
(最小)

Z
(±1°)

5/16”X24

17

11

9.15

2.1

12

1.6

10

12°

3/8”X24

19

13

10.75

12

10

7/16”X20

21

15

12.45

2.6

14

11.5

1/2”X20

23

16

14.05

14

11.5

9/16”X18

25

18

15.70

2.7

15.5

12.7

3/4”X16

30

22

20.65

17.5

2.4

14.3

15°

7/8”X14

34

26

24

20

16.7

1.1/16”X12

41

32

29.2

3.5

23

19

1.3/16”X12

45

35

32.4

1.5/16”X12

49

38

35.55

3.2

1.5/8”X12

58

48

43.55

1.7/8”X12

65

54

49.9

2.1/2”X12

88

70

65.75
